GRID DATA LOGGER
- Intelligent software driven
- Power quality grid monitor
- Provide real-time status and alarms

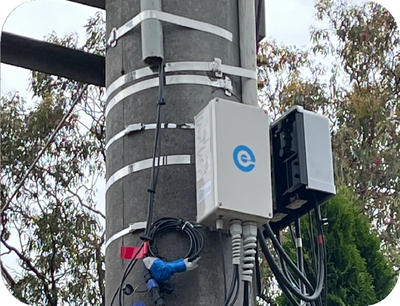

- Easy installation on pole or pad transformers
Ensure grid reliability and safety
Improve grid efficiency and capacity
Improve grid efficiency and capacity
Improve grid efficiency and capacity
Improve grid efficiency and capacity
Improve grid efficiency and capacity
Control DER assets
Improve grid efficiency and capacity
Control DER assets
Track CO2 savings
Improve grid efficiency and capacity
Control DER assets
Key features of the range
- Grid or Transformer Status Monitoring Unit
- For both Single or Three Phase Installations
- Wide Voltage Input - 100-520VAC
- High Temperature Polycarbonate IP68 enclosure
- Monitors and Transmits Full Grid or Transformer Status including Full Power Quality Data.
- Full Alarms including - Power Outages and Recovery, Overloading, Overvoltage, Under voltage, PF min., Reverse Current.
- Remote Firmware Upload to add upgrade Custom
- Options and modify Alarm Limits.
- Intelligent Software Control: Network compatible unit that is programmable over internet.
- Encryption AES128 & SHA256 over private APN.
- Quick install Utility Grade Rogowski Current Transformers.
- Events Logging 10 days – Store and Forward.
- EMI Electrical Noise Suppression Networks.
- Line Surge protected - IEC 61000-4-5 to 10KV / 22KA
- Data Comms – LoRa Mesh (for ongoing development) and Cellular (4G Cat-1 and LTE CAT-M1).
- Unit Ingress Protection: IP68;Compatible to meet NEMA Type 4X
- UL/CSA 61010-1, 61010-2-030
- Current Sensor: UL2808 standard (Category XOBA)
PLATFORM: Edgeconnected
Edge provides state-of-the-art Smart Grid Equipment with ease of installation on Legacy Grid System
Problem
Responding to the evolving energy landscape
Energy networks lack visibility of the low-voltage grid, which is under increasing pressure from new technologies like solar and wind. Without visibility, Networks struggle to manage power supply and maintain reliability.
